咨詢內容：

老師，在分鐘周期如何自動畫日k的開盤收盤價的方框呀

老師，在分鐘周期如何自動畫日k的開盤收盤價的方框呀， ?要是能有上下影線就更好了，比如5分鐘周期
?
以下是通達信的 ?第二種或第二種+源碼效果最好，可以任意周期都能顯示日K
?
第一種：
T:=BARSLAST(DAY!=REF(DAY,1));
?HH:=HHV(H,69);
?LL:=LLV(L,69);
?DRAWLINE(T=0 AND O>REFX(C,BARSNEXT(T=68)),O,T=68 AND C<REF(O,T),REF(O,T),0),COLORCYAN;
?DRAWLINE(T=0 AND O<REFX(C,BARSNEXT(T=68)),O,T=68 AND C>REF(O,T),REF(O,T),0),COLORRED;
?DRAWLINE(T=0 AND O=REFX(C,BARSNEXT(T=68)),O,T=68 AND C=REF(O,T),REF(O,T),0),COLORWHITE;
?DRAWLINE(T=0 AND O>REFX(C,BARSNEXT(T=68)),REFX(C,BARSNEXT(T=68)),T=68 AND C<REF(O,T),C,0),COLORCYAN;
?DRAWLINE(T=0 AND O<REFX(C,BARSNEXT(T=68)),REFX(C,BARSNEXT(T=68)),T=68 AND C>REF(O,T),C,0),COLORRED;
?DRAWLINE(T=0 AND O=REFX(C,BARSNEXT(T=68)),REFX(C,BARSNEXT(T=68)),T=68 AND C=REF(O,T),C,0),COLORWHITE;
?STICKLINE(T=0 AND O>REFX(C,BARSNEXT(T=68)),REFX(C,BARSNEXT(T=68)),O,0,0),COLORCYAN;
?STICKLINE(T=0 AND O<REFX(C,BARSNEXT(T=68)),REFX(C,BARSNEXT(T=68)),O,0,0),COLORRED;
STICKLINE(T=68 AND C<REF(O,T),REF(O,T),C,0,0),COLORCYAN;
?STICKLINE(T=68 AND C>REF(O,T),REF(O,T),C,0,0),COLORRED;
?STICKLINE(T=34 AND REF(O,T)>REFX(C,BARSNEXT(T=68)),REFX(HH,BARSNEXT(T=68)),REFX(LL,BARSNEXT(T=68)),0,0),COLORCYAN;
?STICKLINE(T=34 AND REF(O,T)<REFX(C,BARSNEXT(T=68)),REFX(HH,BARSNEXT(T=68)),REFX(LL,BARSNEXT(T=68)),0,0),COLORRED;
?STICKLINE(T=34 AND REF(O,T)=REFX(C,BARSNEXT(T=68)),REFX(HH,BARSNEXT(T=68)),REFX(LL,BARSNEXT(T=68)),0,0),COLORWHITE;
STICKLINE(T=34,REF(O,T),REFX(C,BARSNEXT(T=68)),0,0),COLORBLACK;



DRAWKLINE(HIGH,OPEN,LOW,CLOSE);




第二種


日1:=HOUR<REF(HOUR,1);
日O:=O#DAY;
日H:=H#DAY;
日L:=L#DAY;
日C:=C#DAY;
STICKLINE(日O<=日C,日C,日O,4,0),COLOR00005C;
STICKLINE(日O>日C,日C,日O,4,0),COLOR005C00;
STICKLINE(日O<=日C,IF(TIME=0950,日H,DRAWNULL),日L,1,0),COLOR00005C;
STICKLINE(日O>日C,IF(TIME=0950,日H,DRAWNULL),日L,1,0),COLOR005C00;
DRAWKLINE(H,O,L,C);



第二種+以下源碼
?
A:=BARSLAST(DATE!=REF(DATE,1))+1;
?T:=BARSLAST(CROSS(A=1,0.5));
?T1:=REF(A,T+1)+A;
?T2:=REF(T1,T+1)+A;
?T3:=REF(T2,T+1)+A;
?T4:=REF(T3,T+1)+A;
?T5:=REF(T4,T+1)+A;
?T6:=REF(T5,T+1)+A;
?T7:=REF(T6,T+1)+A;
?T8:=REF(T7,T+1)+A;
?T9:=REF(T8,T+1)+A;
?H1:=FINDHIGH(H,0,A,1);
?H2:=FINDHIGH(H,A,REF(A,T+1),1);
?H3:=FINDHIGH(H,T1,REF(A,T+1),1);
?H4:=FINDHIGH(H,T2,REF(A,T+1),1);
?H5:=FINDHIGH(H,T3,REF(A,T+1),1);
?H6:=FINDHIGH(H,T4,REF(A,T+1),1);
?H7:=FINDHIGH(H,T5,REF(A,T+1),1);
?H8:=FINDHIGH(H,T6,REF(A,T+1),1);
?H9:=FINDHIGH(H,T7,REF(A,T+1),1);
?H10:=FINDHIGH(H,T8,REF(A,T+1),1);
?L1:=FINDLOW(L,0,A,1);
?L2:=FINDLOW(L,A,REF(A,T+1),1);
?L3:=FINDLOW(L,T1,REF(A,T+1),1);
?L4:=FINDLOW(L,T2,REF(A,T+1),1);
?L5:=FINDLOW(L,T3,REF(A,T+1),1);
?L6:=FINDLOW(L,T4,REF(A,T+1),1);
?L7:=FINDLOW(L,T5,REF(A,T+1),1);
?L8:=FINDLOW(L,T6,REF(A,T+1),1);
?L9:=FINDLOW(L,T7,REF(A,T+1),1);
?L10:=FINDLOW(L,T8,REF(A,T+1),1);
?STICKLINE(RANGE(CURRBARSCOUNT,1,CONST(A)),CONST(H1),CONST(H1),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,1,CONST(A)),CONST(L1),CONST(L1),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=1 OR CURRBARSCOUNT=CONST(A),CONST(L1),CONST(H1),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(A)+1,CONST(T1)),CONST(H2),CONST(H2),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(A)+1,CONST(T1)),CONST(L2),CONST(L2),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T1) OR CURRBARSCOUNT=CONST(A)+1,CONST(L2),CONST(H2),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T1)+1,CONST(T2)),CONST(H3),CONST(H3),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T1)+1,CONST(T2)),CONST(L3),CONST(L3),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T2) OR CURRBARSCOUNT=CONST(T1)+1,CONST(L3),CONST(H3),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T2)+1,CONST(T3)),CONST(H4),CONST(H4),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T2)+1,CONST(T3)),CONST(L4),CONST(L4),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T3) OR CURRBARSCOUNT=CONST(T2)+1,CONST(L4),CONST(H4),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T3)+1,CONST(T4)),CONST(H5),CONST(H5),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T3)+1,CONST(T4)),CONST(L5),CONST(L5),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T4) OR CURRBARSCOUNT=CONST(T3)+1,CONST(L5),CONST(H5),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T4)+1,CONST(T5)),CONST(H6),CONST(H6),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T4)+1,CONST(T5)),CONST(L6),CONST(L6),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T5) OR CURRBARSCOUNT=CONST(T4)+1,CONST(L6),CONST(H6),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T5)+1,CONST(T6)),CONST(H7),CONST(H7),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T5)+1,CONST(T6)),CONST(L7),CONST(L7),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T6) OR CURRBARSCOUNT=CONST(T5)+1,CONST(L7),CONST(H7),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T6)+1,CONST(T7)),CONST(H8),CONST(H8),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T6)+1,CONST(T7)),CONST(L8),CONST(L8),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T7) OR CURRBARSCOUNT=CONST(T6)+1,CONST(L8),CONST(H8),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T7)+1,CONST(T8)),CONST(H9),CONST(H9),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T7)+1,CONST(T8)),CONST(L9),CONST(L9),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T8) OR CURRBARSCOUNT=CONST(T7)+1,CONST(L9),CONST(H9),0,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T8)+1,CONST(T9)),CONST(H10),CONST(H10),8,0),COLORYELLOW;
?STICKLINE(RANGE(CURRBARSCOUNT,CONST(T8)+1,CONST(T9)),CONST(L10),CONST(L10),8,0),COLORYELLOW;
?STICKLINE(CURRBARSCOUNT=CONST(T9) OR CURRBARSCOUNT=CONST(T8)+1,CONST(L10),CONST(H10),0,0),COLORYELLOW;
?
?


? <!-- 咨詢內容：

附件 :

-->

?

?來源:程序化99網（ www.weiqiv.net.cn ）

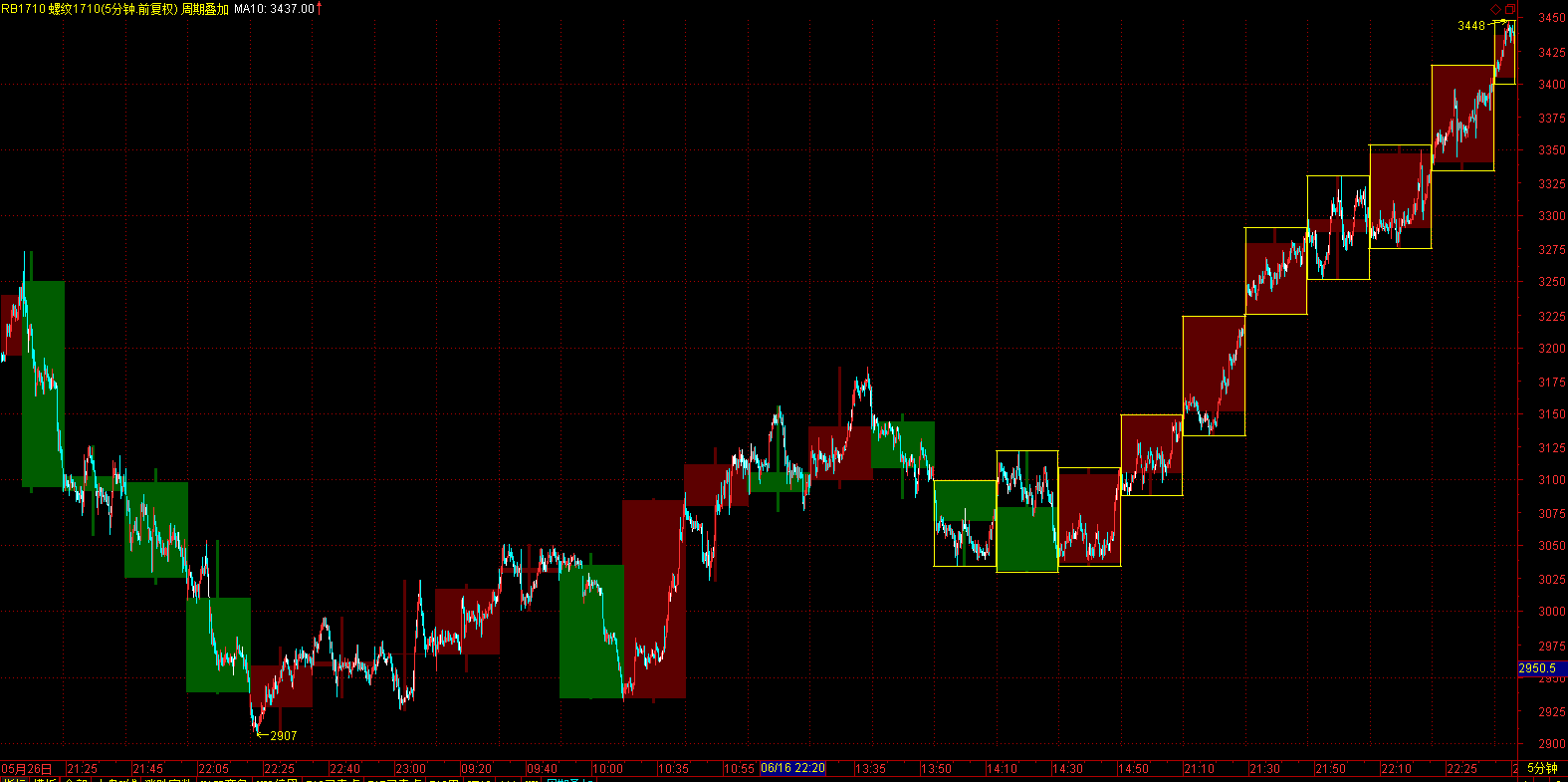

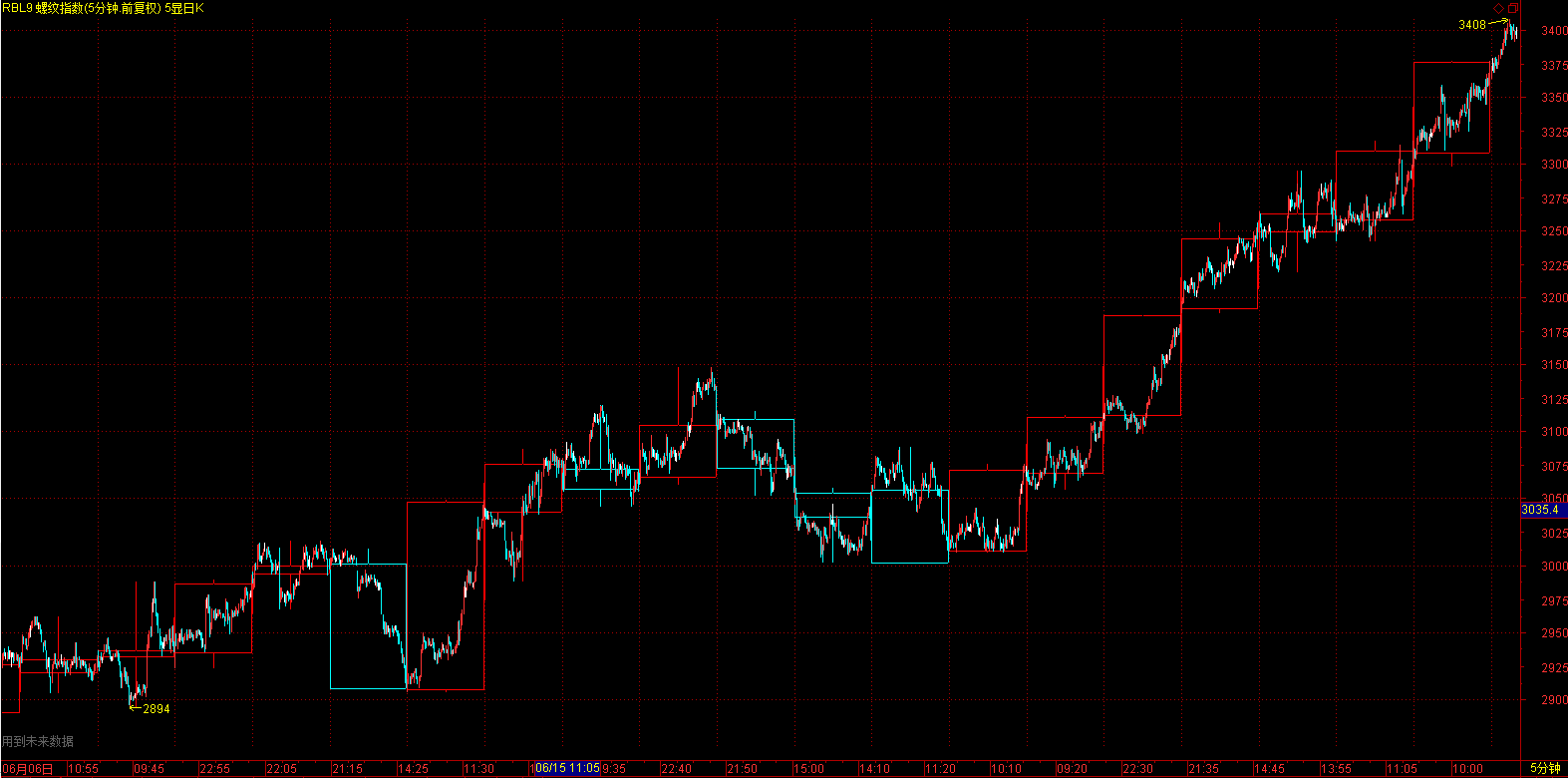

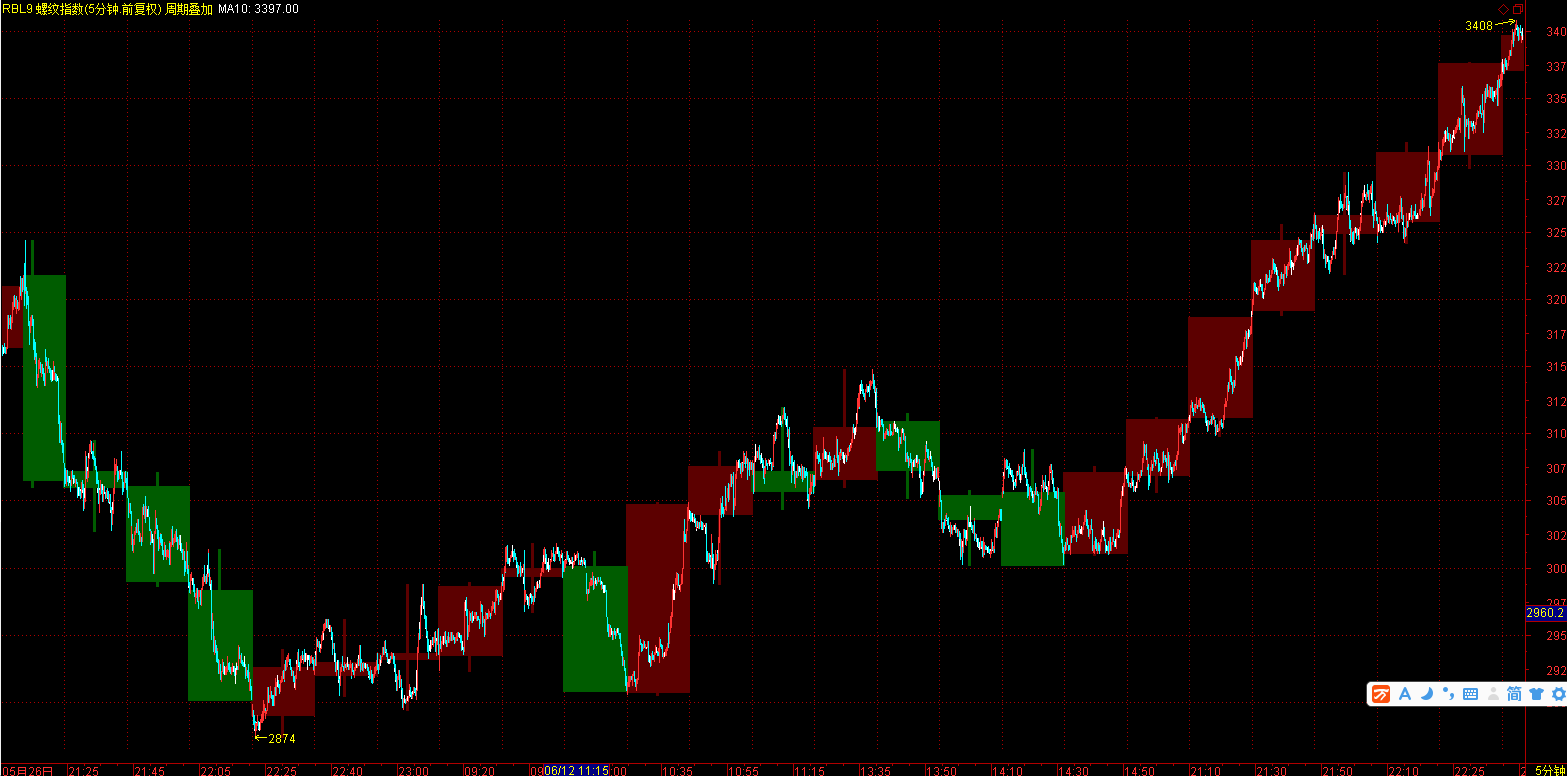

博易技術人員： 效果圖：
?
??
A:=REF(HOUR,1)=15ANDHOUR<>15;
DH:=STKDATA('',6,'OPEN');
DL:=STKDATA('',6,'CLOSE');
DHR:VALUEWHEN(A,REF(DH,1));
DLR:VALUEWHEN(A,REF(DL,1)); 來源 程序化久久網
